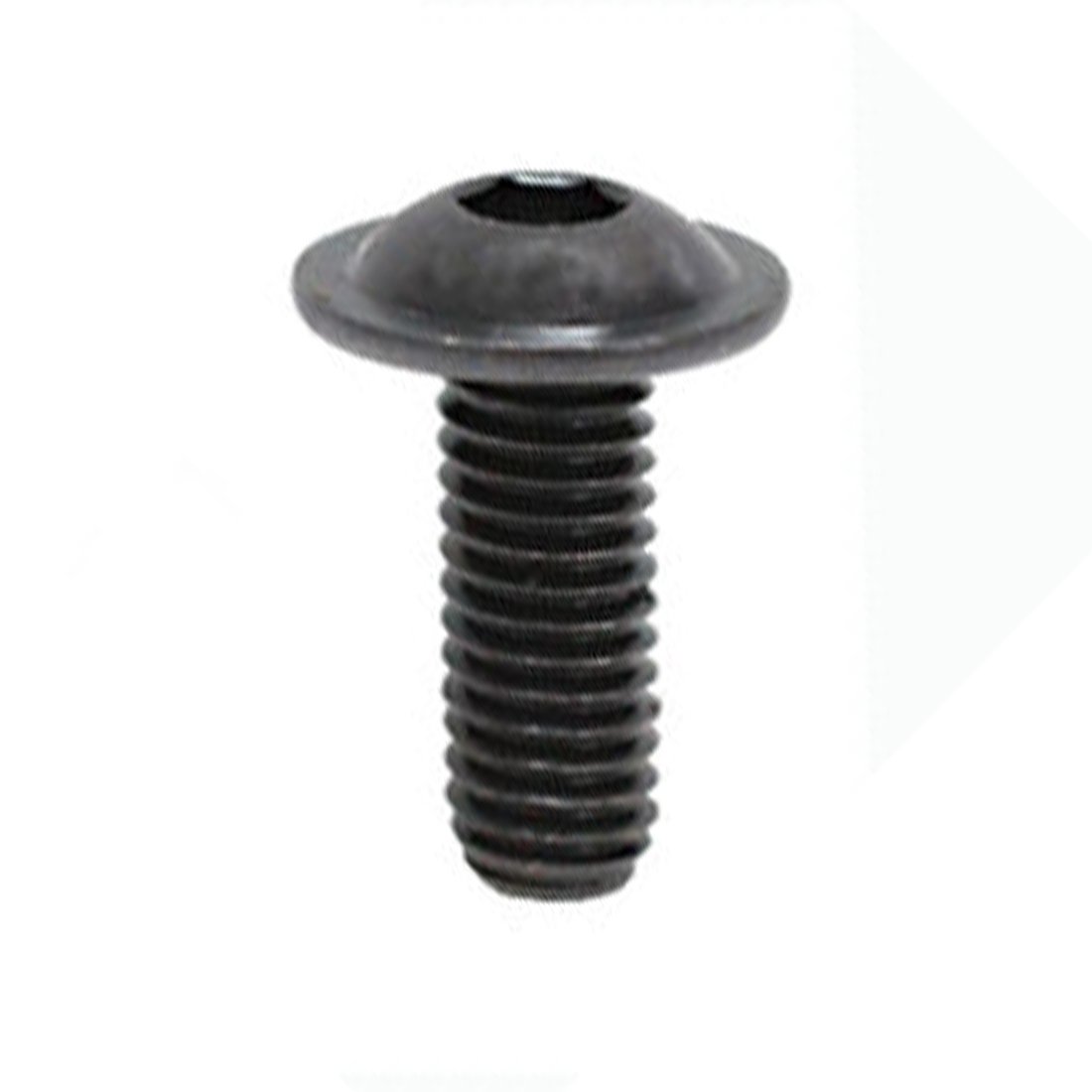

Button Head Screw M8 x 25 Flanged Stainless Steel A2 Din 7380

    Categories

    Button Head Screw M8 x 25 Flanged Stainless Steel A2 Din 7380
    Code: M8X25SSBHF

    AEF Ltd stockist of M8X25SSBHF, Button Head Screw in Ireland. See our wide range of Fasteners & Fixings in stock. Order today.

    €0.62 incl VAT

    In Stock


    Min Qty: 100

    QtyAdd to Cart

    Product Description

    M8X25SSBHF | Button Head Screw

    Socket Screws | Fasteners & Fixings

    Features:
    The M8 x 25mm Socket Flanged Button Screws (ISO 7380-2) - Stainless Steel (A2) has the following features:
    • ISO 7380-2 Manufacturing Standard
    • 25mm Length (L)
    • Stainless Steel (A2) Material
    • Stainless Steel (A2) Material Specification
    • Natural Finish
    • 1.25mm Thread Pitch
    • 4.4mm Head Height (H)
    • Metric Metric or Imperial?
    • M8 (8mm) Thread Size
    • 17.8mm Flange Diameter (D)
    • 13.2mm Head Diameter
    • 5mm Socket Size (J)
    • 2.6mm Hexagon Depth (Min) (P)
    • +0.02/+0.14mm Socket Size (J) Tolerance
    • +0/-0.7mm Flange Diameter (D) Tolerance
    • 1.5mm Flange Height (FL)
    • +0/-0.25mm Flange Height (FL) Tolerance
    • +0/-0.43mm Head Diameter Tolerance
    • +0/-0.3mm Head Height (H) Tolerance
