Button Head Screw M6 x 20 Flanged Stainless Steel A2 Din 7380

    Categories

    Button Head Screw M6 x 20 Flanged Stainless Steel A2 Din 7380
    Code: M6X20SSBHF

    AEF Ltd stockist of M6X20SSBHF, Button Head Screw in Ireland. See our wide range of Fasteners & Fixings in stock. Order today.

    €0.22 incl VAT

    In Stock


    QtyAdd to Cart

    Product Description

    M6X20SSBHF | Button Head Screw

    Socket Screws | Fasteners & Fixings

    Features:

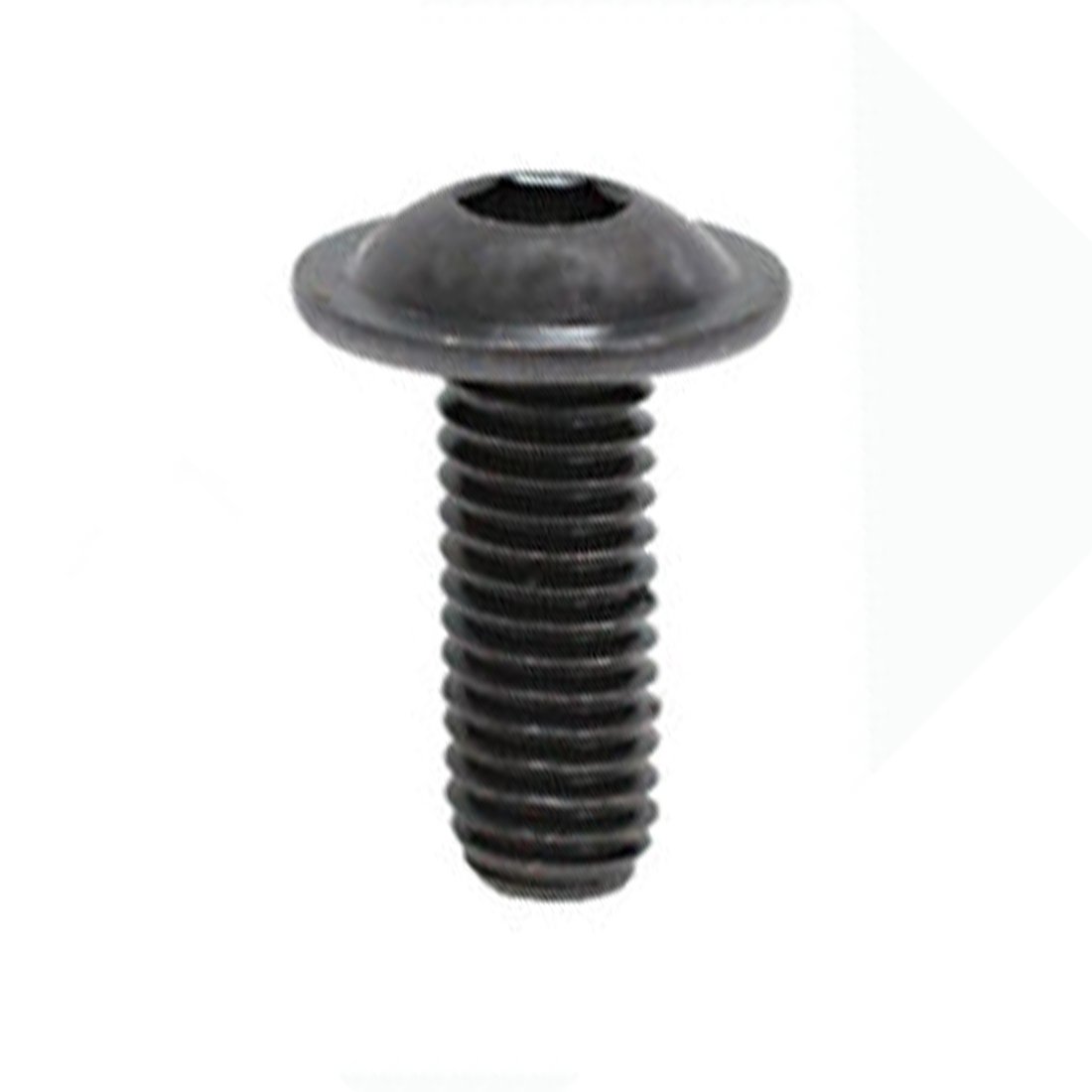

    The M6 x 20mm Socket Flanged Button Screws (ISO 7380-2) - Black Stainless Steel (A2) has the following features:
    • ISO 7380-2 Manufacturing Standard
    • 20mm Length (L)
    • Stainless Steel (A2) Material
    • Stainless Steel (A2) Material Specification
    • Matte Black Finish
    • 1mm Thread Pitch
    • 3.3mm Head Height (H)
    • M6 (6mm) Thread Size
    • 13.6mm Flange Diameter (D)
    • 10mm Head Diameter
    • 4mm Socket Size (J)
    • 2.08mm Hexagon Depth (Min) (P)
    • +0.02/+0.095mm Socket Size (J) Tolerance
    • +0/-0.7mm Flange Diameter (D) Tolerance
    • 1.2mm Flange Height (FL)
    • +0/-0.2mm Flange Height (FL) Tolerance
    • +0/-0.36mm Head Diameter Tolerance
    • +0/-0.3mm Head Height (H) Tolerance

    To know more about our products, please send us an email.
