Code: M6X12BHFP
AEF Ltd stockist of M6X12BHFP, Button Head Screw in Ireland. See our wide range of Fasteners & Fixings in stock. Order today.
€0.18 incl VAT
In Stock
Min Qty: 100
QtyAdd to Cart

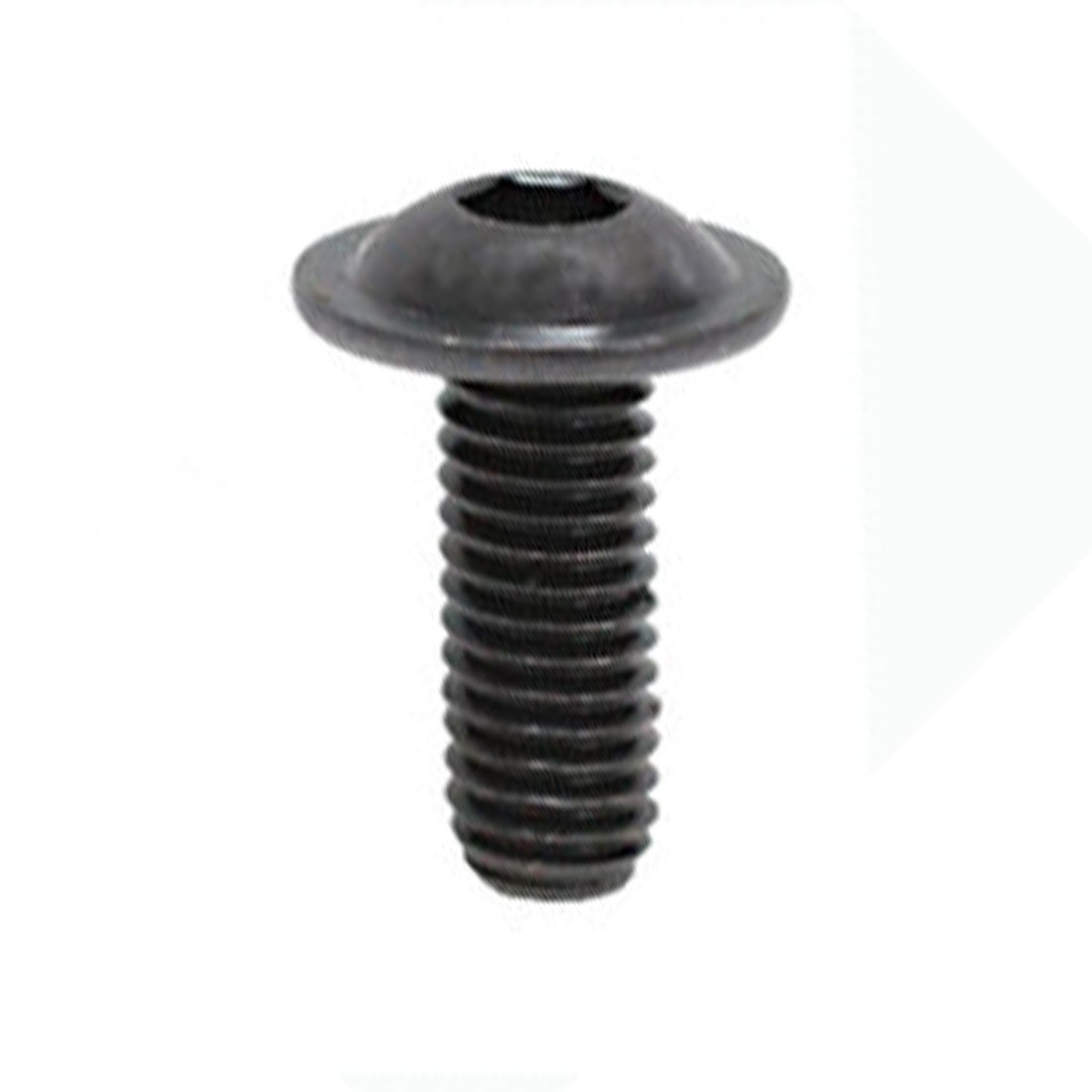

M6X12BHFP | Button Head Screw
Socket Screws | Fasteners & Fixings
Features:
The M6 x 12mm Socket Flanged Button Screws (ISO 7380-2) - Stainless Steel (A2) has the following features:
To know more about our products, please send us an email.
- ISO 7380-2 Manufacturing Standard
- 12mm Length (L)
- Stainless Steel (A2) Material
- Stainless Steel (A2) Material Specification
- Natural Finish
- 1mm Thread Pitch
- 3.3mm Head Height (H)
- M6 (6mm) Thread Size
- 13.6mm Flange Diameter (D)
- 10mm Head Diameter
- 4mm Socket Size (J)
- 2.08mm Hexagon Depth (Min) (P)
- +0.02/+0.095mm Socket Size (J) Tolerance
- +0/-0.7mm Flange Diameter (D) Tolerance
- 1.2mm Flange Height (FL)
- +0/-0.2mm Flange Height (FL) Tolerance
- +0/-0.36mm Head Diameter Tolerance
- +0/-0.3mm Head Height (H) Tolerance
