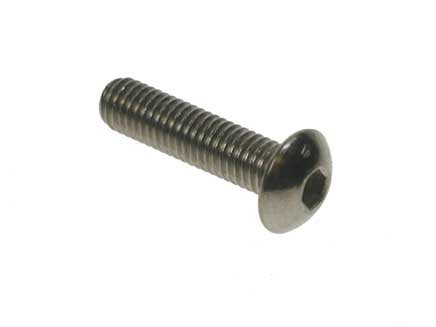

Button Head Screw M5 x 20 Stainless Steel A2 Din 7380

Code: M5X20SSBH

AEF Ltd stockist of M5X20SSBH, Button Head Screw in Ireland. See our wide range of Fasteners & Fixings in stock. Order today.

0.20 incl VAT

In Stock



M5X20SSBH | Button Head Screw

Socket Screws | Fasteners & Fixings

Features:
The M5 x 20mm Socket Button Screws (ISO 7380-1) - Stainless Steel (A2) has the following features:
  • 2.75mm Head Length (H)
  • ISO 7380-1 Manufacturing Standard
  • 20mm Length (L)
  • Stainless Steel (A2) Material
  • Stainless Steel (A2) Material Specification
  • Natural Finish
  • 0.8mm Thread Pitch
  • M5 (5mm) Thread Size
  • 9.5mm Head Diameter (D)
  • +0/-0.36mm Head Diameter (D) Tolerance
  • +0/-0.25mm Head Length (H) Tolerance
  • 3mm Socket Size (J)
  • 1.56mm Socket Depth (Min) (P)
