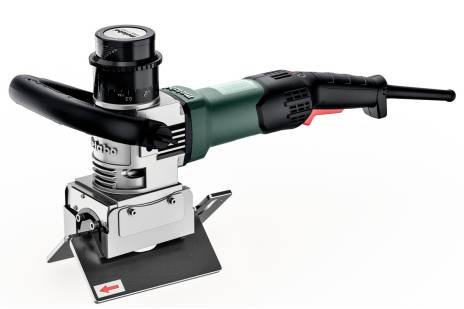

Metabo Bevelling Tool for Metal 110V KFMV 17-15 F 1400W

Code: 601770610

AEF Ltd. stockists of Metabo 600789850 Cordless Grease Gun FP18LTX 18V in Ireland. Explore our wide range of Metabo Power Tools in stock. Order now.

3,538.59 incl VAT

In Stock



Metabo 601770610

Metabo Bevelling Tool for Metal 110V KFMV 17-15 F 1400W

Product Description:

  • Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation.
  • One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working.
  • Precise setting of the chamfer angle directly via the guide plates.
  • Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°.
  • Guide stop for a uniform finish and high quality surface finish when processing straight edges.
  • Controlled working by virtue of large-scale guide plates.
  • Stop roller to guide along pipes for easy preparation of weld seams.
  • Bail handle adjusts without tools for secure, even guiding.
  • Metabo Marathon-motor with patented dust protection for long service life.
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load.
  • Electronic overload protection, soft start and restart protection.
  • Slim design for ideal handling.
  • Protection of the user by virtue of lateral plates for conveying the chips.
  • With metaBOX, the intelligent solution for transport and storage.

Technical Information:

Characteristics
  • No-load speed : 6200 - 12000 rpm
  • Rated input power  :1400 W
  • Output power : 740 W
  • Type of edges : Chamfer
  • Chamfer angles : 0 - 90 °
  • Max. chamfer width 45° : 21 mm / 13/16 "
  • Max. chamfer height at 45° : 15 mm / 19/32 "
  • Grading of cutting depth setting : 0.1 mm / 0.00394 "
  • Curves smallest outer Ø  :100 mm / 3 15/16 "
  • Weight (without power cable)  : 6.3
  • Cable length : 3.9
Vibration

  • Vibration : 5 m/s²
  • Uncertainty of measurement K : 1.5 m/s²

Noise emission

  • Sound pressure level : 99 dB(A)
  • Sound power level (LwA) : 107 dB(A)
  • Uncertainty of measurement K : 3 dB(A)
